Produkte | AiO - COMPACT 80

COMING SOON

AiO charging solution

Simultaneous charging with 40kW DC each (2 x 40kW or 1 x 80kW)

2 x 40kW DC or 1 x 80kW DC
Simple payment system with girocard, credit card, APP or RFID
Pre-installed and ready for connection
User-friendly 15,6'' touchscreen
White label possible
Width: 0.47m - Height: 1.55m - Depth: 0.55m

Charging type	2x DC
Charging standard	CCS2 (DC)
DC output power	max. 80kW per charging point
DC output voltage	150 - 1000V
Maximum current	DC 250A (with temperature monitoring)
Simultaneous charging	40kW DC + 40kW DC
Cable length CCS Combo 2 (Mode 4)	approx. 2 x 2.70m
Number of operated EVs (Electrical Vehicles)	max. 2 EV simultaneously
Communication with the EV	DIN SPEC 70121:2014 ISO15118
Accessories	15.6" display (incl. colour/LED status display, pictograms)
EPR registration number	17228913

User authentication	RFID, NFC (girocard/credit card), app, AdHoc
Connectivity	Mobile radio
Communication protocols	OCPP 1.6, connection of further interfaces e.g. OCPP 2.0
RFID reader	Yes

Software update	Over-The-Air (OTA)
Control and configuration	CPO via OCPP (Dashboard)
Multilingual system	German, English, Italian, Spanish and more than 50 languages available

IP and IK classification	IP54, IK10 System must not be exposed to higher humidity for longer than 2 weeks when de-energised to prevent damage to the electronics.
Enclosure type (material)	Powder-coated steel and aluminium housing
Operating temperature range	min. -20°C to max. +45°C
Efficiency	95 % at full load
Ambient temperature range	min. -20°C to max. +60°C
Air humidity	5 % to 90 %
Mounting	Freestanding housing
Environment	Indoor and outdoor installation
Enclosure interlock	Lock on front and back door
Mounting accessories	Concrete base
Area of application	Semi-public, public
Enclosure design	- Standard: RAL 3020 red, pillars RAL 9006 - Customer-specific colour selection and foiling possible
Protective devices	- Customer-specific colour selection and - LS overcurrent protection (MCB) - Overvoltage protection - Insulation monitoringpossible
Dimensions (H x W x D)	1.55m x 0.47m x 0.55m
Weight	~ 375kg

Load management

Charging power max. 2 x 40kW or 1 x 80kW (DC charging)

White label
option

Vandalism-proof, weatherproof

Pre-installed and
ready for connection

Powder-coated steel and aluminium housing

Integrated
power electronics

CE declaration of conformity
DIN 61851-1, DIN 61851-21, DIN 61851-23

Simple payment

Billing in compliance with calibration law

15,6'' touch screen with graphic visualisation

Stand-alone
charging solution

COMPACT 80
SMART 160
MASTER 480
SMART 500
MASTER 720

Compact80-2024-03-seitlich-2

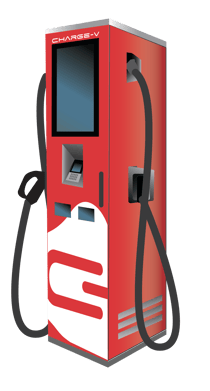

The COMPACT 80 is an all-in-one charging solution thanks to its integrated power electronics.

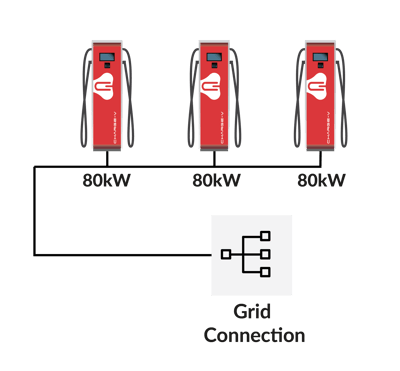

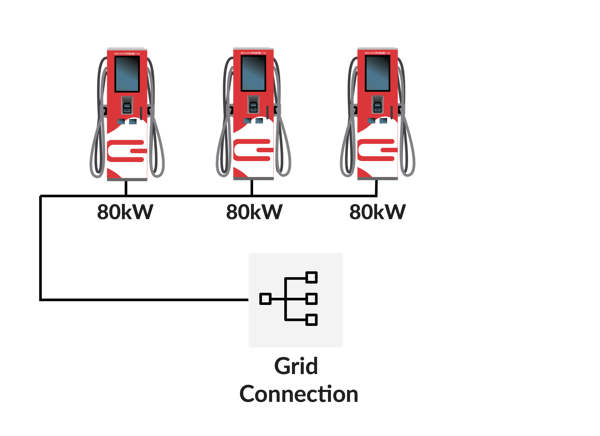

The COMPACT 80 stand-alone charging station is equipped with two DC connections so that two electric vehicles can be charged simultaneously with 40kW each. If only one vehicle is being charged, the full DC charging power of 80kW can be called up.
