The SMART 160

save space when charging
with a small footprint and
an integrated cable
rewinding system.

The charging pole SMART 160 by CHARGE-V is in conformity with calibration regulations and comes with an integrated cable stowaway system: the 6,5 m long cables make charging much easier for your users. The compact dimensions of this charging pole allow for flexible placement in cities and towns. It is ideal for fleets, retail stores, the gastronomy and municipal utilities.

kv-kontur-06
CHARGING WITH DC OR AC

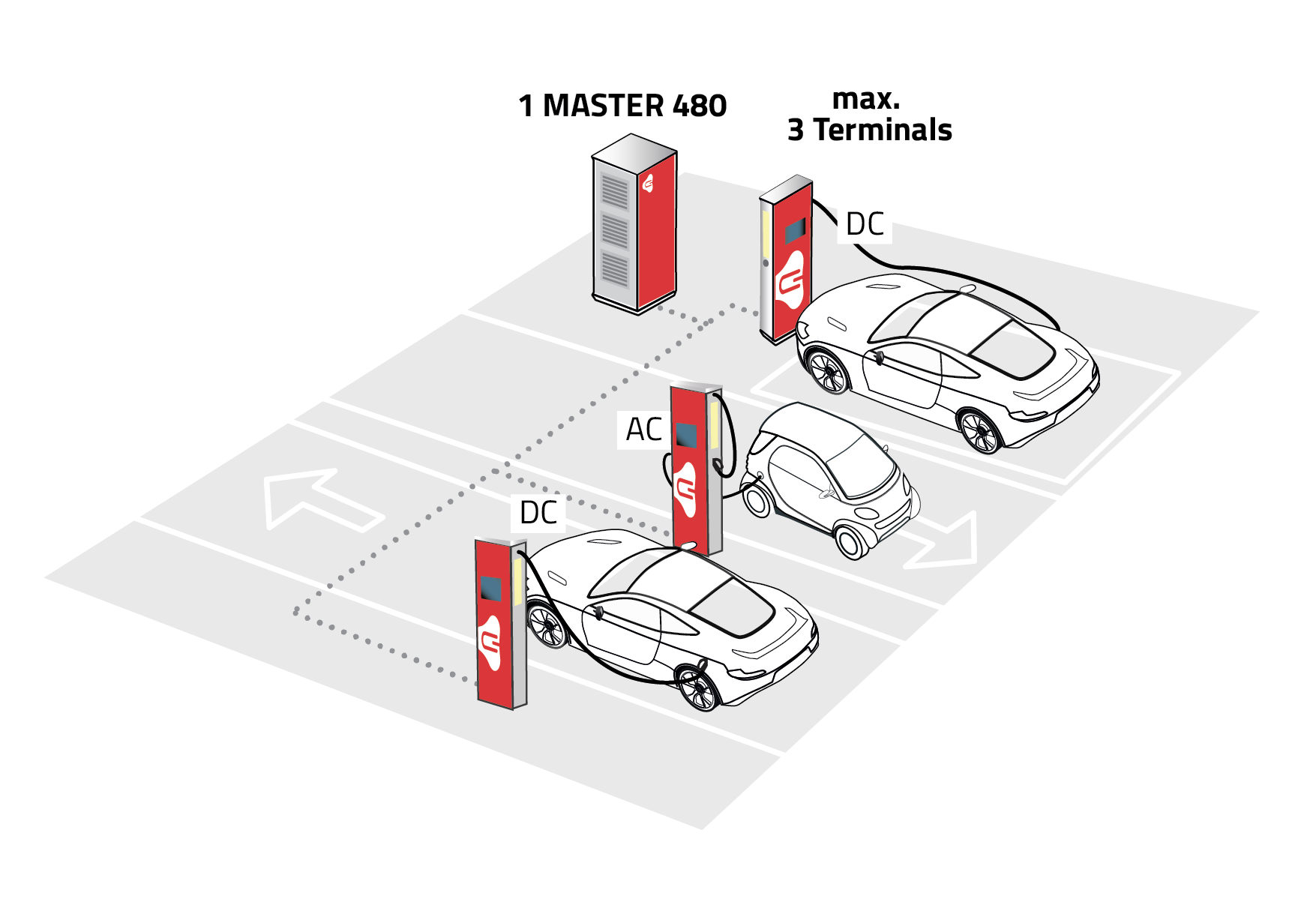

Different charging options

3d-SMART-QUER-Infografik-2023-web
web-smart-infografik
SMART 160

Technical specifications

Product Information

Charging type  AC + DC
Charging standard Type 2 (AC) + CCS2 (DC)
DC output power max. 160 kW per charging point
AC output power (optional) max. 22 kW per charging point
DC output voltage 300 - 1000 V
Rated voltage 400 V
Rated frequency 50 Hz
Maximum current AC 32 A / DC 400 A (with temperature monitoring)
Simultaneous charging 22 kW AC + 160 kW DC
Cable length Type 2 (Mode 3) 1 x 8 m, extendable up to 6,5 m
Cable length CCS Combo 2 (Mode 4) 1 x 8 m, extendable up to 6,5 m
Earthing system TN-C
Number of EVs served (Electrical Vehicle) max. 2
Communication with EV DIN SPEC 70121:2014
Accessories 15,6" display (incl. colour/LED status display, pictograms)
Energy measurement Calibration law

User Interface

User authentication RFID, NFC (EC/credit), App, AdHoc, Roaming
User interface 15,6" touch screen with high contrast
Communication protocols LAN (OCPP 1.6), mobile radio module
RFID reader Yes
Certified backend Wirelane
Legal Metrology Compliance - Certification Module B and D

Configuration

Software update Over-The-Air (OTA)
Control and configuration CPO via OCPP (Dashboard)
Multilingual system German, English, Italian, Spanish and more than 50 languages available

General Characteristics

IP- and IK-classification IP54
Enclosure type (material) Powder-coated steel and aluminium housing
Operating temperature range min. -20 °C to max. +45 °C
Efficiency 95 % at full load
Ambient temperature range  min. -20 °C to max. +60 °C
Humidity 5 % to 90 %
Mounting Free-standing housing
Environment Indoor and outdoor installation
Enclosure lock Lock on cover (remaining components cannot be removed)
Mounting accessories Mounting base
Interconnection functionality  External master control unit
Number of charging points in the network 3 x AC / 3 x DC charging points per Power Unit, max. 10 Power Units can be interconnected
Area of application semi-public, public
Temperature Temperature sensor, temperature-dependent power regulation
Design Housing Standard: red, customised colour selection & foiling possible
Protection devices  - RCD type B

- LS Overcurrent protection (MCB)

- Overvoltage protection

- Insulation monitoring
Standards CE test, IEC 61851
Dimensions (H x W x D) 1,99 m x 0,95 m x 0,35 m
Weight ~ 200 kg

Energy Data Acquisition

Meter type AC eHz
Meter type DC MID
Meter display Digital display

Ideal areas of use:


vehicle fleets


retail stores

   gastronomy

    municipal utilities

DOWNLOAD NOW
In our data sheet, you will find all technical specifications of the SMART 160 charging pole. Download now as pdf file.

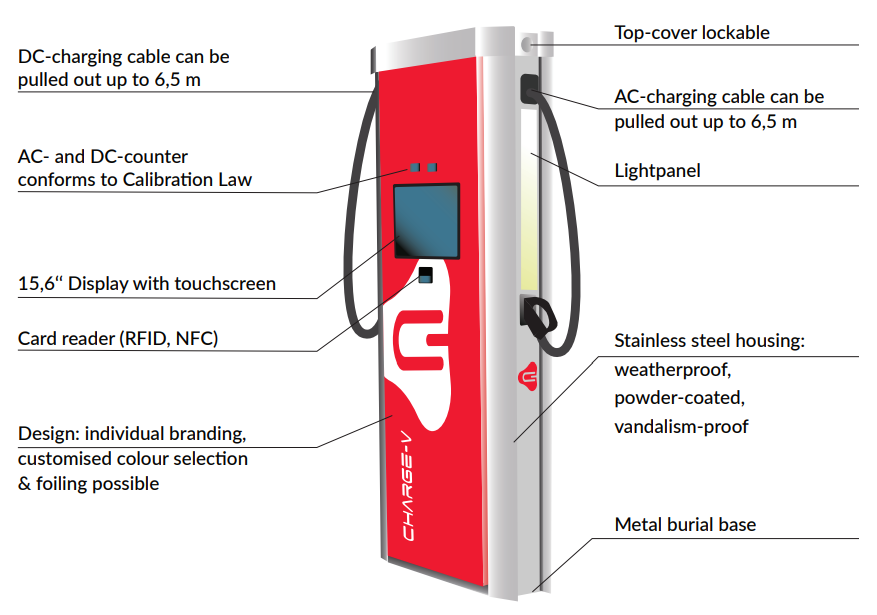

POWERFUL FEATURES

Special characteristics

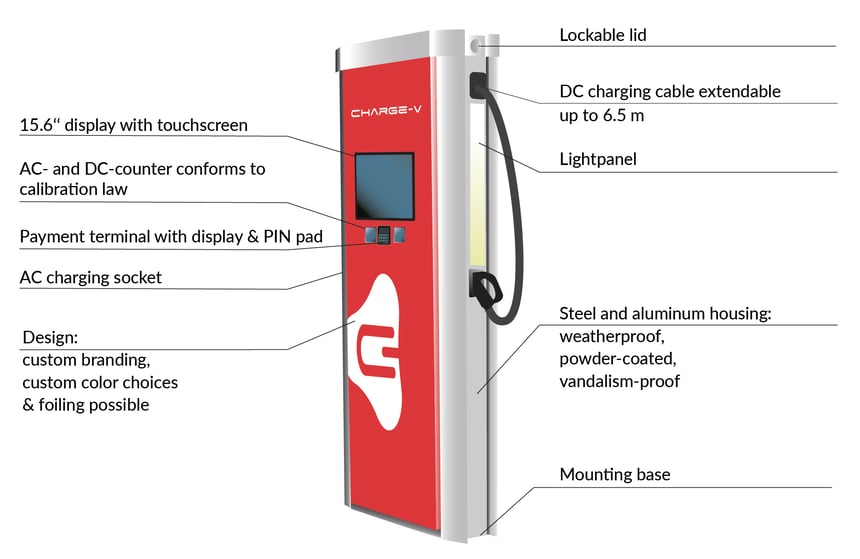

ENG-3D-Smart-USP-2023-web
