The SATELLITE 160

in conformity with calibration regulations, with integrated impact protection, impressively designed.



Coming soon!

v-modell

The charging station SATELLITE 160 by CHARGE-V is a robust device to charge your electrical vehicles safely and easily - guaranteed. Its unique and impressive design draws attention. Ideal for the use at service areas, in towns and cities, filling stations and in free parking lots.


kv-kontur-06
CHARGING WITH DC OR AC

Different charging options

Infografik-ladesystem-bus
Infografik-ladsystem-vmodell-2
SATELLITE 160

Technical specifications

Product Information

Charging type AC + DC
Charging standard Type 2 (AC) + CCS2 (DC)
DC output power max. 160 kW per charging point
AC output power (optional) max. 22 kW per charging point
DC output voltage 300 - 1000 V
Rated voltage 400 V
Rated frequency 50 Hz
Maximum current AC 32 A / DC 400 A (with temperature monitoring)
Simultaneous charging 22 kW AC + 160 kW DC
Earthing system TN-C
Cable length Type 2 (Mode 3) 1 x 5 m
Cable length CCS Combo 2 (Mode 4) 1 x 5 m
Number of EVs served (Electrical Vehicle) max. 2
Communication with EV DIN SPEC 70121:2014
Accessories 7" display (incl. colour/LED status display, pictograms)
Energy measurement Calibration law

User Interface

User authentication RFID, NFC (EC/credit), App, AdHoc, Roaming
User interface 7" touch screen with high contrast
Communication protocols LAN (OCPP 1.6), mobile radio module
RFID reader Yes
Certified backend Wirelane
Verification conformity - Certification Module B and D

Configuration

Software update Over-The-Air (OTA)
Control and configuration CPO via OCPP (Dashboard)
Multilingual system German, English, Italian, Spanish and more than 50 languages available

General Characteristics

IP- and IK-classification IP54
Enclosure type (material) Powder-coated steel and aluminium housing
Operating temperature range min. -20 °C to max. +45 °C
Efficiency 95 % at full load
Ambient temperature range  min. -20 °C to max. +60 °C
Humidity 5 % to 90 %
Mounting Free-standing housing
Environment Indoor and outdoor installation
Enclosure lock Lock on cover (remaining components cannot be removed)
Mounting accessories Mounting base
Interconnection functionality  External master control unit
Number of charging points in the network 3 x AC / 3 x DC charging points per Power Unit, max. 10 Power Units can be interconnected
Area of application semi-public, public
Temperature Temperature sensor, temperature-dependent power regulation
Design Housing Standard: red, customised colour selection & foiling possible
Protection devices  - RCD type B
- LS Overcurrent protection (MCB)
- Insulation monitoring
Standards CE test, IEC 61851
Dimensions (H x W x D) 2,25 m x 1,50 m x 0,30 m
Weight ~ 150 kg

Energy Data Acquisition

Meter type AC eHz
Meter type DC MID
Meter Display digital display

Ideal areas of use:


Service areas


Towns and cities


Filling stations


Parking lots

DOWNLOAD NOW
In our data sheet, you will find all technical specifications of the SATELLITE 160 charging station. Download now as pdf file.
POWERFUL FEATURES

Special characteristics

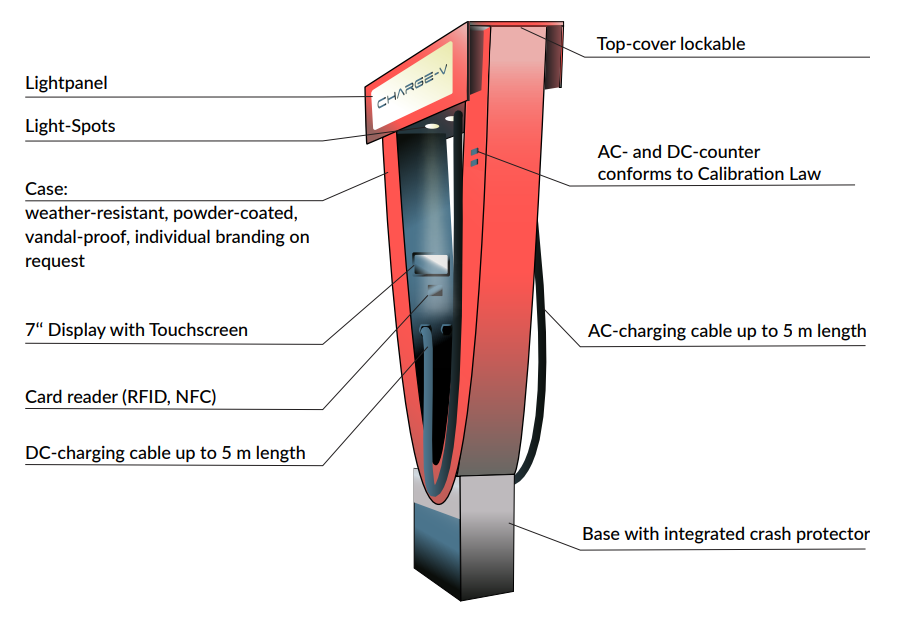

Features Satellite englisch
